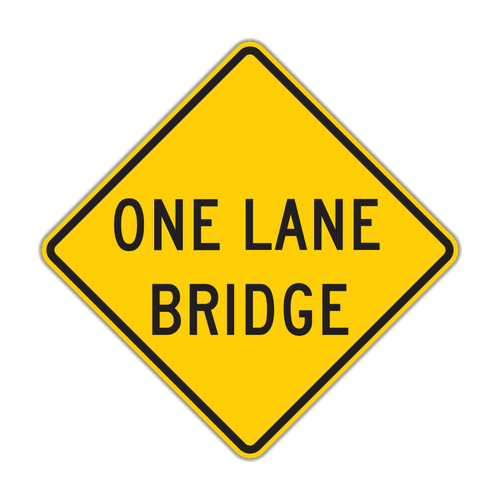

One Lane Bridge (W5-3)
One Lane Bridge (W5-3)
Couldn't load pickup availability
- Description
- Key Features:
- Specifications:
The ONE LANE BRIDGE (W5-3) sign serves as a critical traffic indicator on two-way roadways. It is strategically placed in advance of bridges or culverts meeting specific criteria:
-
Clear Roadway Width: The sign is essential for bridges or culverts with a clear roadway width of less than 16 feet.
-
Commercial Vehicle Influence: It's also crucial when commercial vehicles constitute a high proportion of the traffic, but the clear roadway width is less than 18 feet.
-
Limited Sight Distance: Additionally, this sign is employed when the sight distance leading to the structure is restricted.
-
Shape: This sign takes the form of a diamond.
-
Color Scheme: It features a vibrant yellow background with a bold black legend and border.
-
Visibility: The retroreflective material used ensures visibility during both day and night, enhancing overall road safety.
-
Durability: Crafted from weather-resistant traffic-grade aluminum, this sign is designed to withstand harsh environmental conditions.
-
Easy Installation: It comes pre-punched with radiused corners and 3/8" mounting holes, simplifying the installation process.
-
MUTCD Code: W5-3
-
Description: One Lane Bridge
-
Shape: Diamond
-
Background Color: Yellow
-
Text Color: Black
-
Setup: Finished Sign
This sign, with its attention to visibility, durability, and precise specifications, plays a vital role in guiding and safeguarding road users when navigating narrow or potentially hazardous bridge structures.
Note: If your order requires custom artwork, please download and use the art template if provided above. Once formatted come back to this product and upload the artwork to continue with your order. If there are any issues, we will contact you for modifications and approval.
